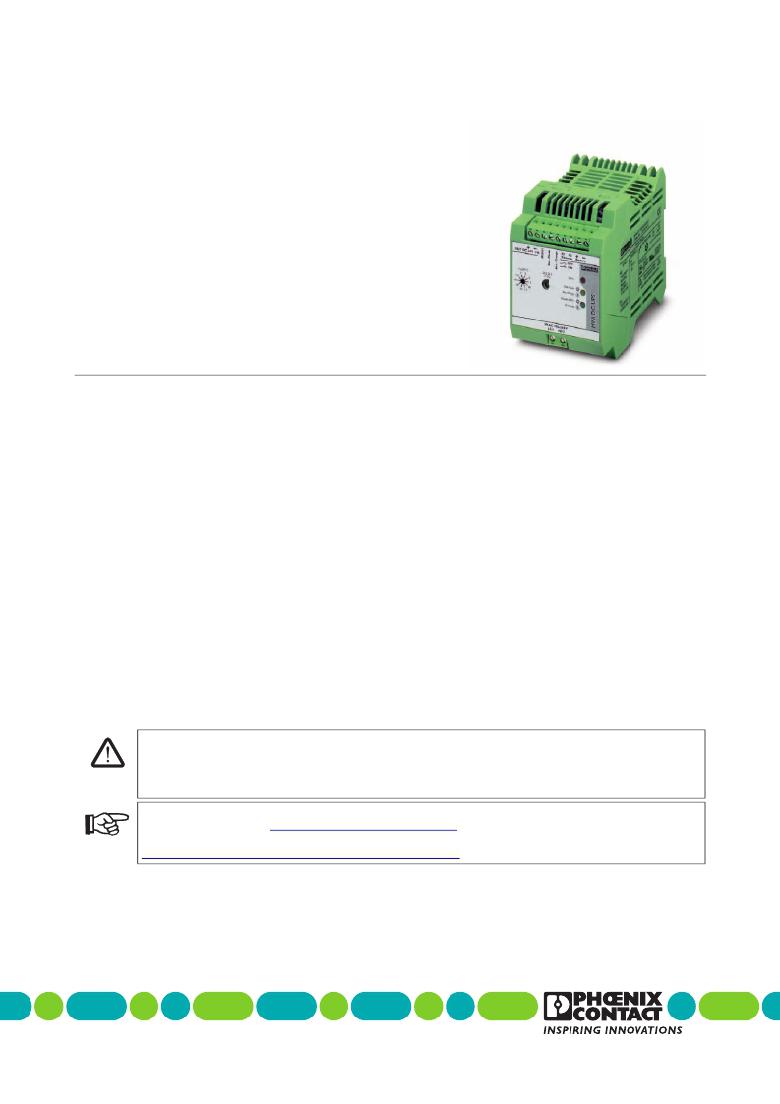

MINI-DC-UPS/24DC/2
Uninterruptible power supply
INTERFACE
Data Sheet
103123_00_en
Description
? PHOENIX CONTACT - 01/2007
Especially compact and easy-to-use, the new MINI-DC-UPS/
24 DC/2 is a combination of the power supply unit and an un-
interruptible power supply in the conventional ME housing. It
secures the operation of all connected 24 V consumers in the
electrical systems both in the case of an error-free supply
network and in the event of mains interferences.
The combined solution enables a slim design with dimensi-
ons of 67.5 x 99 x 107 mm. The wide-range input allows input
voltages between 85 V AC and 264 V AC; 2 A is provided at
the output with a regulated and adjustable output voltage
between 22.5 V DC and 29.5 V DC. The rechargeable bat-
The system availability is increased using extensive signa-
ling through control lamps and active switching outputs. The
charging process of the rechargeable battery module, the
operational readiness, the buffer mode and the alarm mes-
sages are displayed before the rechargeable battery module
is discharged. The service life of the rechargeable battery
module can be increased by optimum battery management;
for example, a temperature-compensated charging protects
the rechargeable battery module at high ambient temperatu-
res. An integrated timeout minimizes installation costs consi-
derably.
tery module supplies an output voltage between 27.9 V DC
and 19.2 V DC in the buffer mode. A 0.8 Ah or a 1.3 Ah re-
chargeable battery module is used depending on the re-
quired buffer time: The module thus supplies 2 A for five mi-
nutes with the 0.8 Ah rechargeable battery module or 2 A for
30 minutes with the 1.3 Ah rechargeable battery module. The
buffer time varies depending on the load current.
Danger!
Components with dangerously high voltage and high stored energy are located in the device!
Never carry out work on live parts!
Depending on the ambient temperature and the load, the housing can become very hot!
Make sure you always use the the latest documentation.
It can be downloaded at www.download.phoenixcontact.com .
A conversion table is available on the Internet at
www.download.phoenixcontact.com/general/7000_en_00.pdf .
